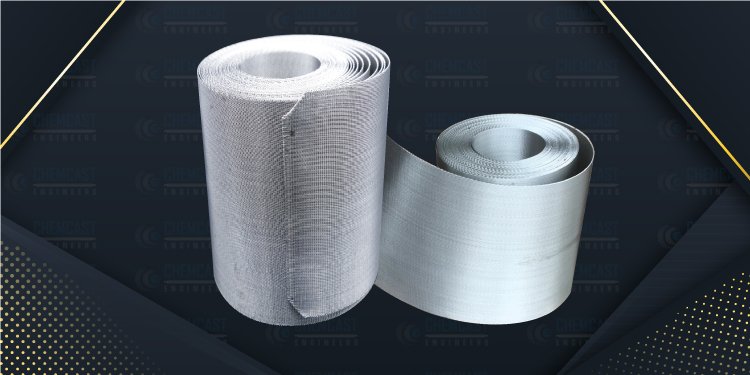

Filter Belt

Chemcast Engineers honoured to provide filter belt with best price ranges and superior quality with high tensile strenght with different wire mesh layer such as reverse dutch weave and twill weave mesh

We offer customize range of filter belt with different specification and application as per user satisfaction The belt are available of different size as per customer need

High tearing strength
Abrasion-Resistant
Stable and Flexible

Filter cloth made in polyester or polypropylene.

Material	Specification	Quantity	Weight	Mesh count Warp	Mesh count Weft	Wire diameter Warp	Wire diameter Weft	Mesh thickness(mm)
SS201	15230mesh157mm*10m	1	5.6	152	28-30	0.27	0.39	1
SS201	7215mesh165mm*10m	1	8	72	13-15	0.45	0.55	1.6
SS201	15224mesh165mm*10m	1	5.9	152	22-24	0.27	0.4	1.1
SS304	15230mesh157mm*10m	1	5.6	152	28-30	0.27	0.39	1
SS304	7215mesh165mm*10m	1	8	72	13-15	0.45	0.55	1.6
SS304	15224mesh165mm*10m	1	5.9	152	22-24	0.27	0.4	1.1
